Iron Ore Green Pellet Handling Solutions

Reciprocating Belt Conveyor

A solution to improve screening and firing processes and reduce power consumption.

Reciprocating conveyors are a reliable solution for those looking for an even distribution layer of green ball pellets from a balling disc belt conveyor onto a wide belt conveyor.

Specialized belt conveyors complete Metal7’s offering of global solutions for green pellet sizing and grate feeding. The additional tons produced at the lowest marginal cost will provide a shorter return on investment period for the installation/conversion.

The Challenge

The bed profile by which pellets are fed onto the roller feeder is a critical parameter to optimize both the screening and firing processes and is closely controlled by pelletizing plant operators.

Roller screens operate in combination with other different equipment that have an effect on both the performance of the screening function and also on the induration and the overall pelletizing line productivity.

The performance in energy consumption, productivity of the line and quality of the pellets would be affected by undesired variation in the profile.

The challenge is to avoid variation in the pellet discharge on the grate and ensure consistent firing of green pellets.

The Solution

FIELD-PROVEN ELECTROMECHANIC DRIVE (EDM) TECHNOLOGY

Metal7 reciprocating conveyor enables the process to spread pellets uniformly in the wide belt conveyor, using our high performance OEM Electromechanics technology that replaces the traditional hydraulic drive system and provides many advantages.

EMD virtually eliminates the need for regular maintenance associated with a hydraulic drive, resulting in higher uptime than a hydraulic system. There’s virtually no maintenance required: no filter, no oil change, no spills, improved safety and it’s environmentally-friendly.

With the EMD we can profile the pellet bed to compensate for this effect, which allows for a more uniform heat distribution… improving the cooking of the pellets (improving quality and/or reducing energy and/or increasing productivity).

CUSTOMIZED BED PROFILE

On any projects involving a roller feeder, Metal7 considers all the other equipment surrounding the feeder. Three machines operate in combination with each other to provide the required pellet layout: the reciprocating (or shuttle) belt conveyor, the wide belt conveyor and the roller feeder.

The best furnace feeding solution comes from the efficient operation of the three machines working together : more uniform and constant pellet distribution, thus improved pellet sizing on the roller feeder and an optimized green pellet bed profile on the traveling grate with a positive impact on pellet quality.

Our EMD technology allows to build the perfect bed profile, adapted to the specific needs of the firing process in the furnace. Metal7 engineers accompany clients in all the design and implementation processes to meet and surpass expected performance.

BENEFITS & FEATURES

Compact and adaptable design
Higher uptime and pelletizing line productivity
Improved reliability & safety
Consumes 50% to 70% less power than a traditional Hydraulic Cylinder System
Electromechanic system is virtually maintenance free and much cleaner than a hydraulic system (no oil required)
Lower inventory costs for spare parts
Less maintenance & fewer specialized personnel required
Less sensitive to hostile environments

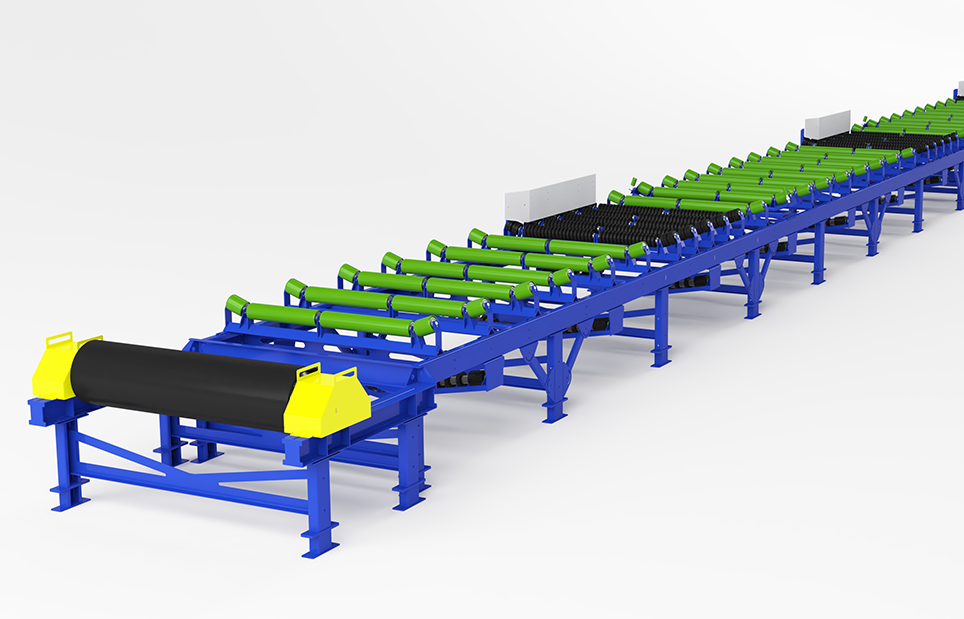

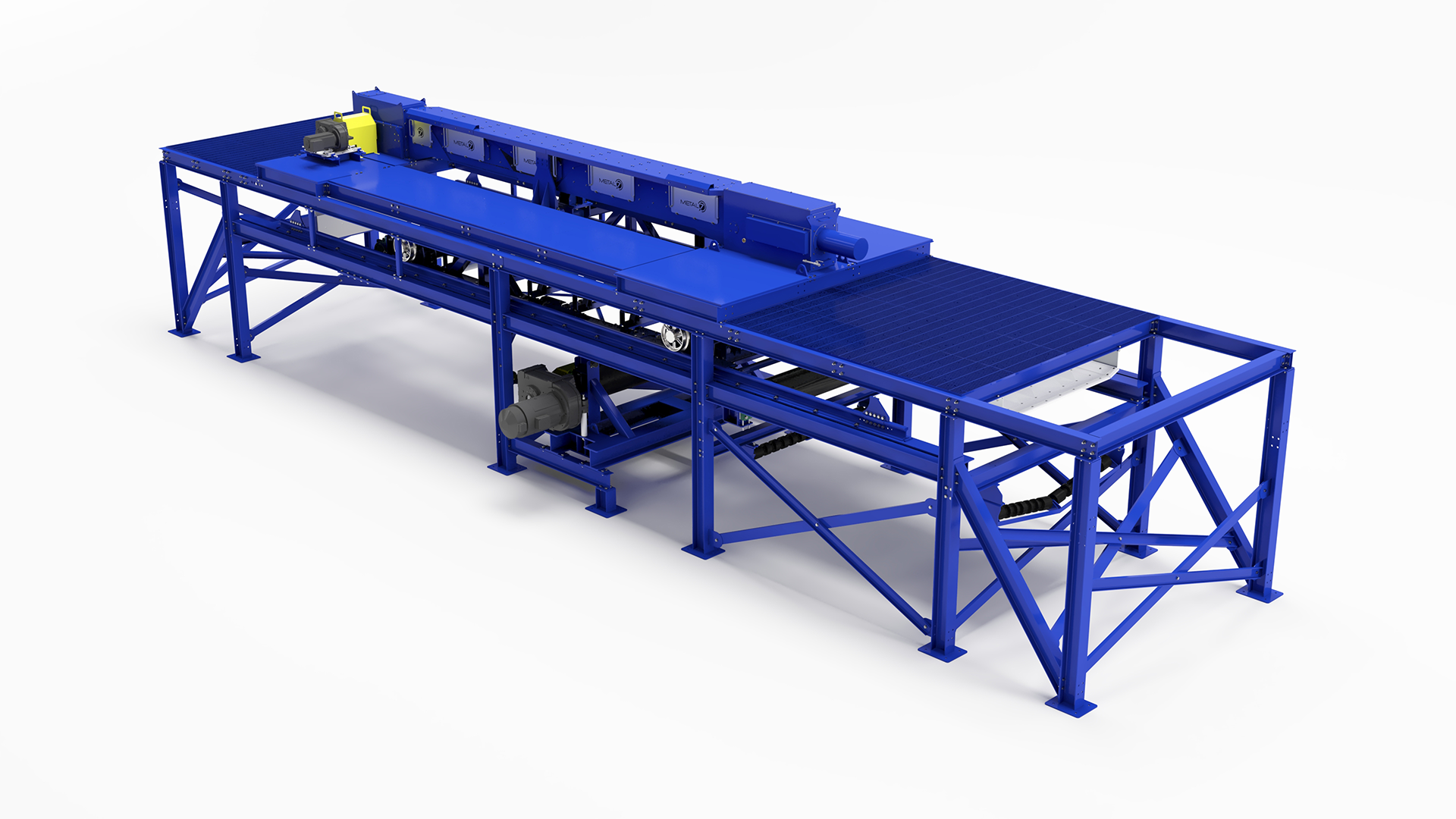

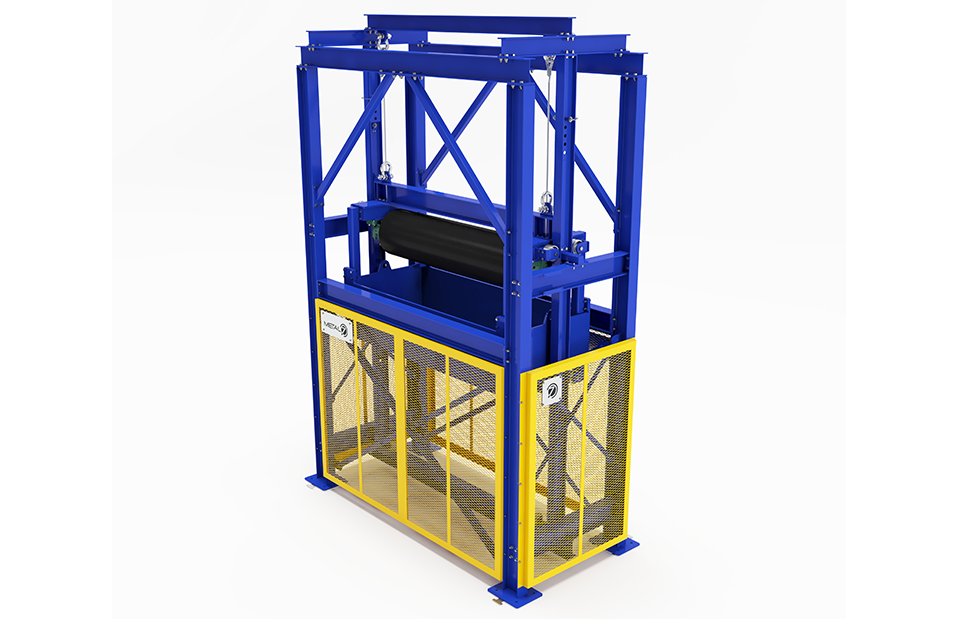

See it in action

1 / 3

A Partnership That Lasts

With our world-class expertise in surface engineering and our proficiency in complex industrial processes, Metal7 built a solid reputation with multiple worldwide top mining companies in the metallurgical sector.

Our innovation team continuously addresses customers’ challenges and strives to develop and improve our products to help our clients increase the reliability and performance of their critical equipment and processes.
